Q1: What is the STG06 flush diaphragm pressure sensor?
The STG06 is an industrial pressure sensor based on a diffused silicon core with a flush diaphragm design. It prevents clogging and is ideal for measuring viscous or particle-containing fluids.
Q2: What applications is the STG06 flush diaphragm pressure sensor suitable for?
The STG06 flush diaphragm pressure sensor is designed for measuring pressure in viscous, sticky, or clogging media. It is widely used in dispensing systems, polyurethane foaming equipment, pneumatic conveying systems, pharmaceutical manufacturing, and food processing industries. Its front-mounted diaphragm structure prevents blockage and ensures accurate pressure measurement in harsh conditions.
Q3: Why is the STG06 ideal for viscous fluid pressure measurement?
The STG06 uses a diffused silicon sensing element combined with an external flush diaphragm, preventing process media from entering the sensing cavity. This anti-clogging design makes it highly suitable for high-viscosity fluids, slurry, or media prone to crystallization and buildup.

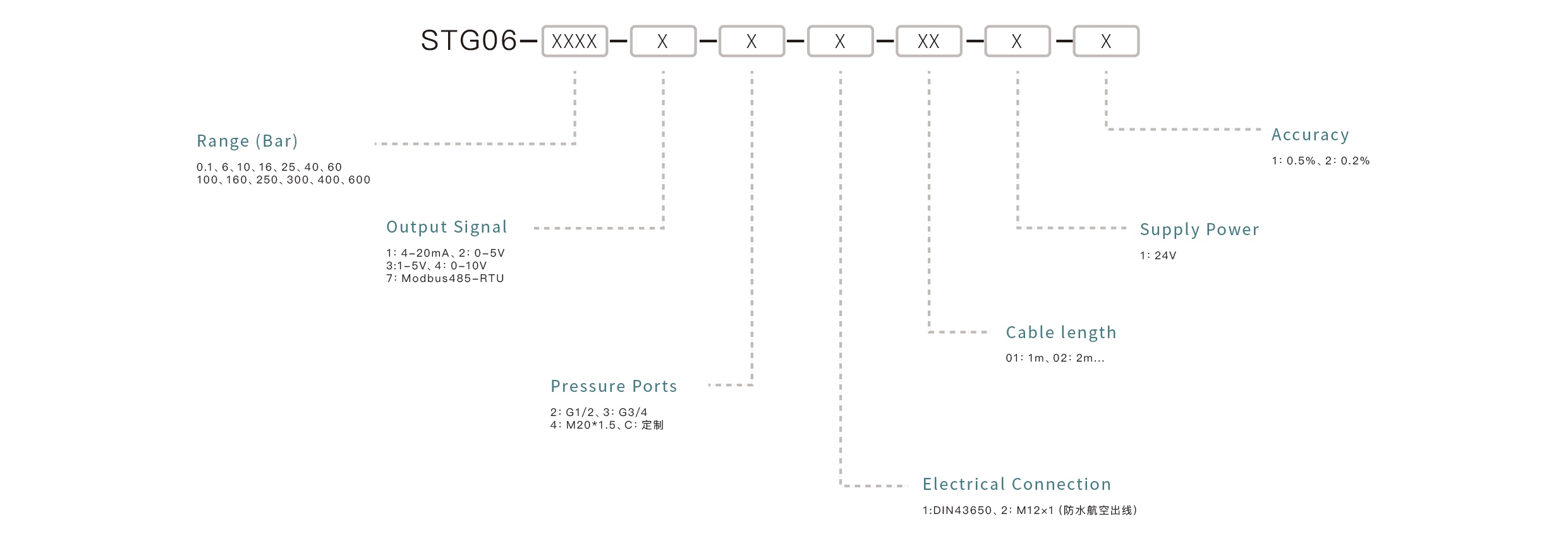

Q4: What output signals does the STG06 pressure transmitter support?
The STG06 supports multiple industry-standard outputs, including 4–20mA, 0–5V, 1–5V, 0–10V, and Modbus RS485-RTU communication, allowing seamless integration with PLCs, DCS systems, and industrial automation platforms.
Q5: What is the operating temperature range of the STG06?
The sensor operates in ambient temperatures from -20°C to +85°C, with a media temperature range of -40°C to +125°C. Temperature compensation is provided from -25°C to +85°C to maintain measurement accuracy.
