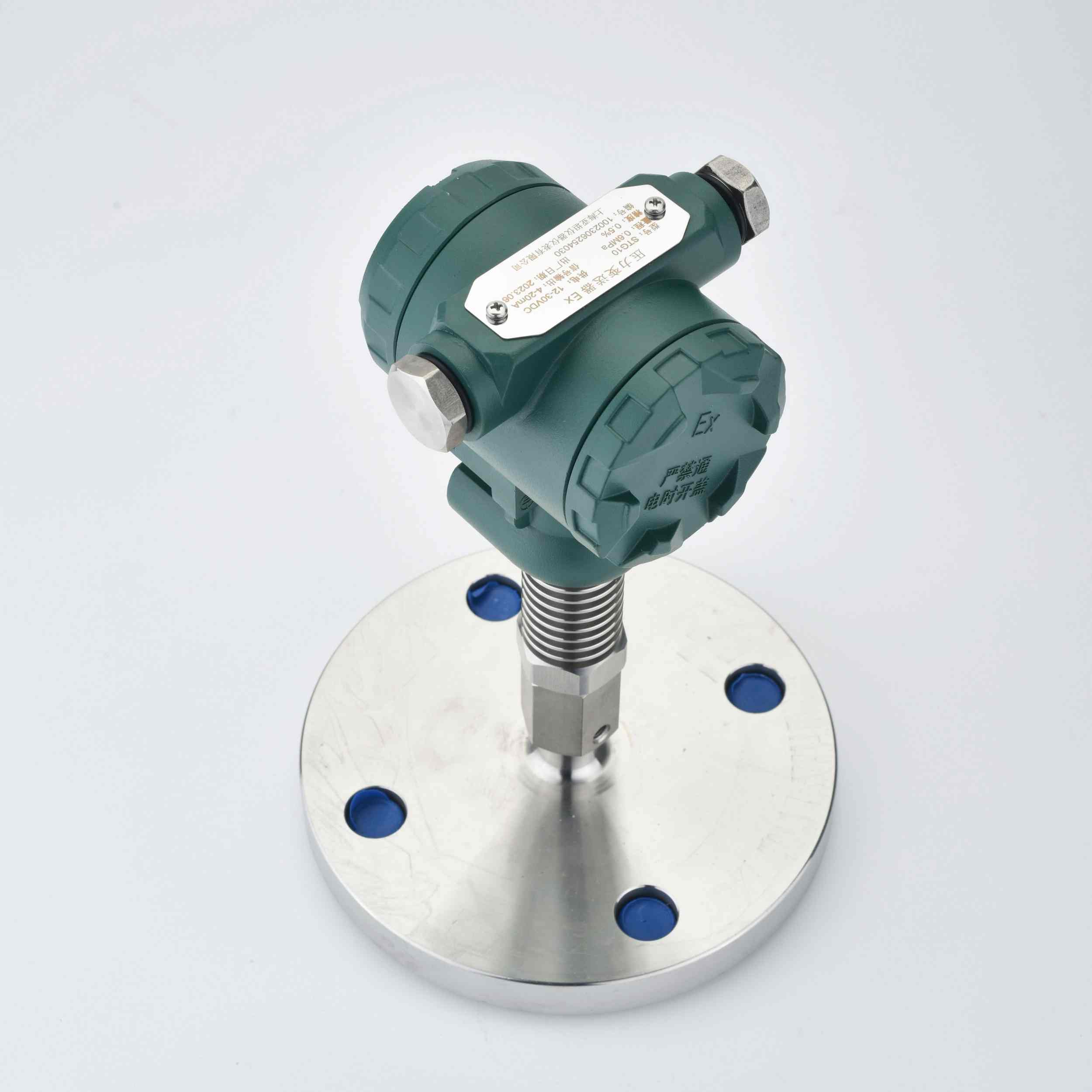

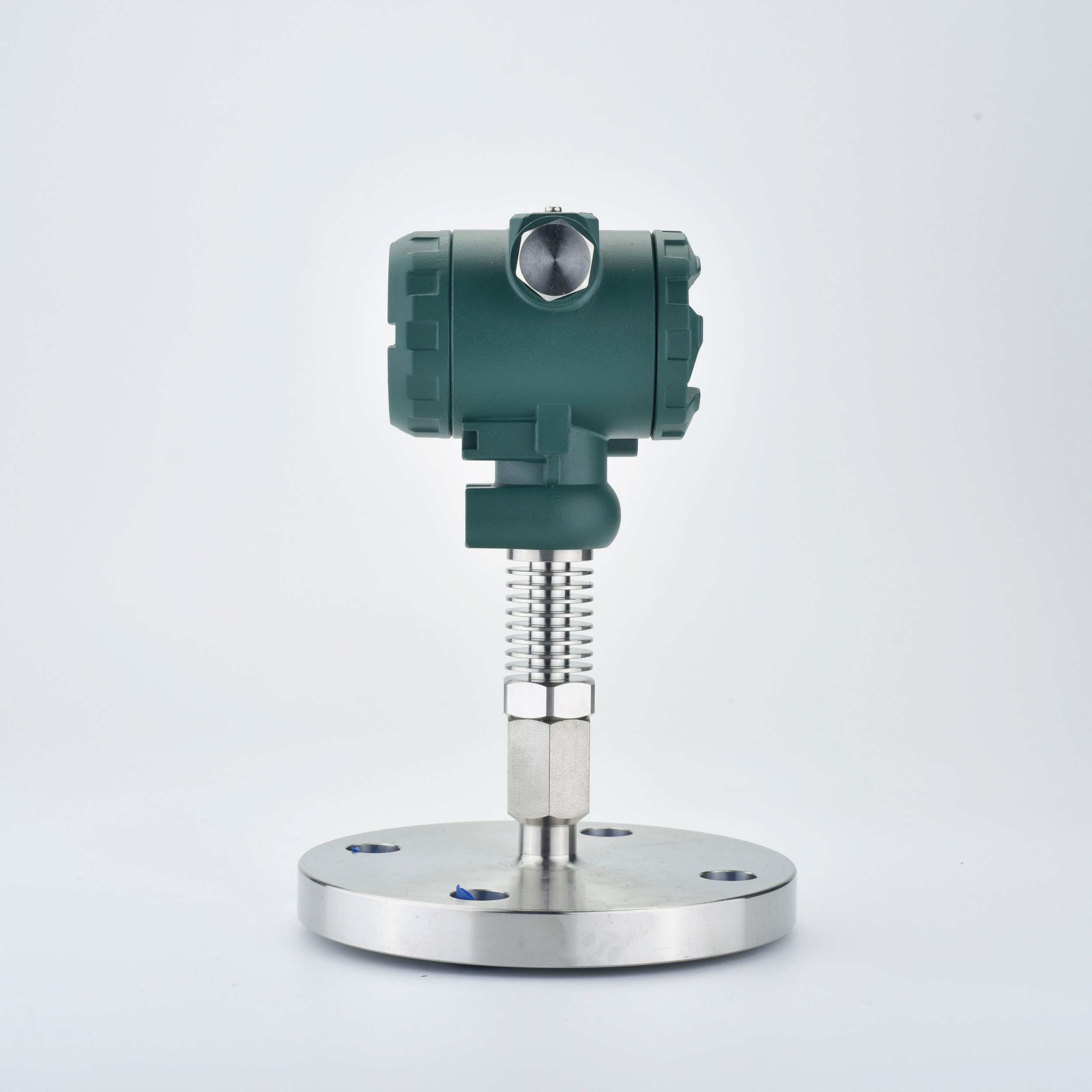

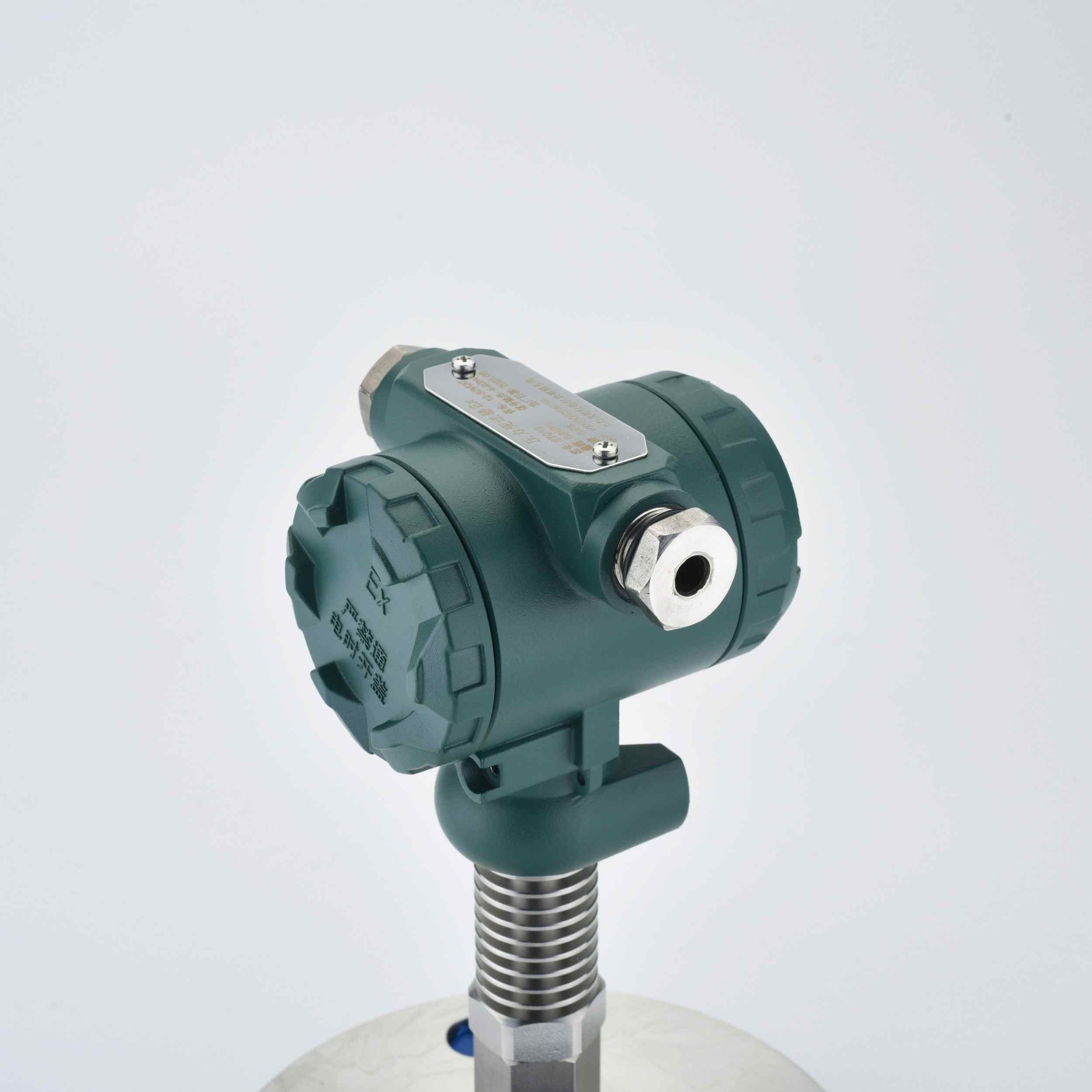

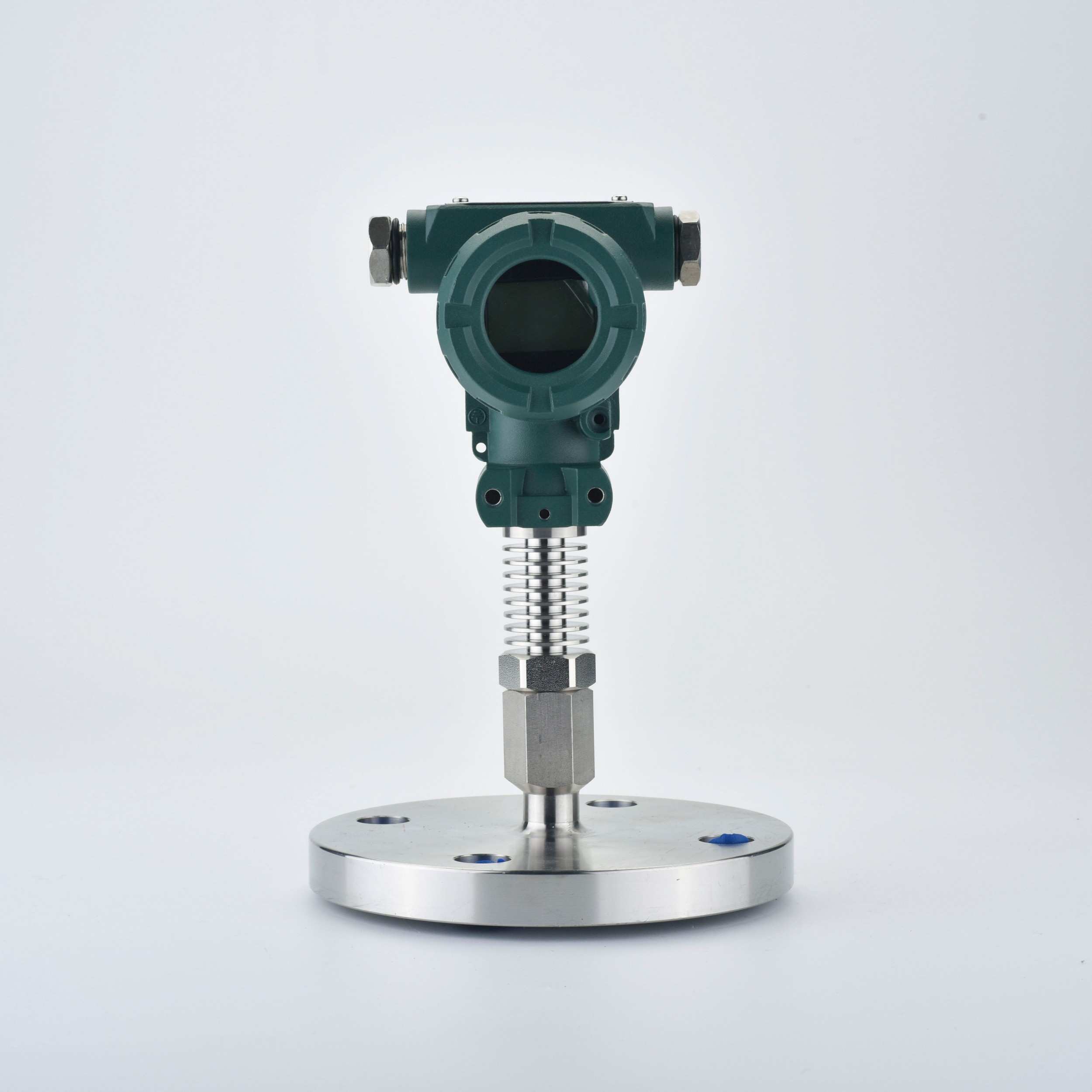

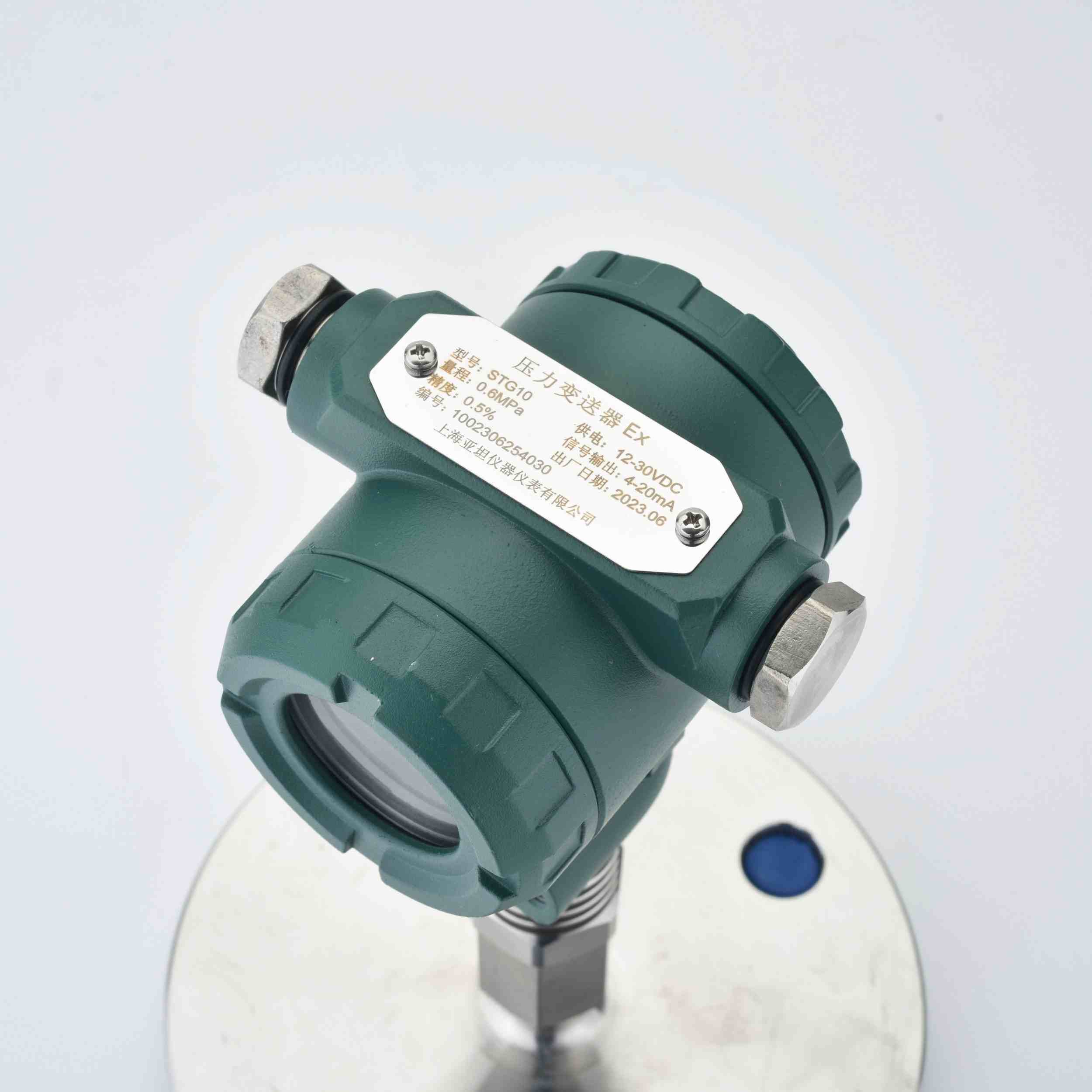

STG10 Corrosion-Resistant Explosion-Proof High-Temperature Pressure Transmitter image frontSTG10 Corrosion-Resistant Explosion-Proof High-Temperature Pressure Transmitter image backSTG10 Corrosion-Resistant Explosion-Proof High-Temperature Pressure Transmitter image sideSTG10 Corrosion-Resistant Explosion-Proof High-Temperature Pressure Transmitter image topSTG10 Corrosion-Resistant Explosion-Proof High-Temperature Pressure Transmitter image bottom

STG10 Corrosion-Resistant Explosion-Proof High-Temperature Pressure Transmitter

The STG10 corrosion-resistant explosion-proof high-temperature pressure transmitter is designed for harsh industrial environments, including high temperature, corrosive, and complex media conditions. Featuring advanced sensing materials and optimized heat dissipation, it offers excellent high-temperature resistance, anti-corrosion, and anti-clogging performance. It supports measurement of particulate, viscous, and acidic/alkaline media, with wide temperature compensation and stable linear output. Multiple flange options and wetted materials (316L, Tantalum, Titanium, Monel) are available, with CT4/CT6 explosion-proof ratings. Widely used in petrochemical, pneumatic conveying, metallurgy, and high-temperature industrial applications.

1. Key Features

2. Technical Specifications

General Electrical Data

Pressure range 0~0.1~40Bar
Pressure Type Gauge / Absolute
Output signals 4–20mA, Modbus-RTU(RS485), 4–20mA with HART protocol
Supply Voltage 12–30VDC

Performance Specifications

Accuracy ±0.5%F.S, ±0.25%F.S, ±0.1%F.S, up to ±0.075%F.S
Long-term Stability ≤ ±0.2%F.S./year
Overpressure 150%F.S.
Burst pressure 500% FS
Operating temperature range -25 to +85°C
Media temperature range -40 to +300°C / -40 to +800°C / -40 to +1000°C

3. Applications

4. Selection Guide

Pressure Sensor Selection Key Points: Confirm the measuring range, match the output signal, ensure media compatibility, select the appropriate mounting interface, and define the accuracy requirements.

5. FAQ (Frequently Asked Questions)

Q1: What is the STG10 corrosion-resistant explosion-proof high-temperature pressure transmitter?

The STG10 is an industrial-grade pressure transmitter designed for high-temperature, corrosive, and hazardous environments, offering explosion-proof, corrosion-resistant, and high-temperature resistant performance.

Q2: What media can the STG10 pressure transmitter measure?

It is suitable for high-temperature media, particulate media, viscous media, and corrosive media such as acids and alkalis.

Q3: What is the temperature range of the STG10 high-temperature pressure transmitter?

The operating temperature ranges from -25°C to +85°C, while the medium temperature can reach up to 1000°C depending on the model.

Q4: What industries is the STG10 high-temperature pressure transmitter used in?

It is widely used in powder handling, pneumatic conveying, petrochemical, metallurgy, natural gas, and high-temperature industrial systems.

Q5: What material options are available for the STG10 pressure transmitter?

It offers multiple wetted material options including 316L stainless steel, Tantalum, Titanium, and Monel for different corrosive media.

Q6: How stable is the output of the STG10 pressure transmitter?

It features excellent linearity and wide temperature compensation for long-term stable output.

6. Related Products

7. Contact Us

📧 Email: sales@yatansensor.com,   support@yatansensor.com

💬 WhatsApp:+86 185 1660 2370

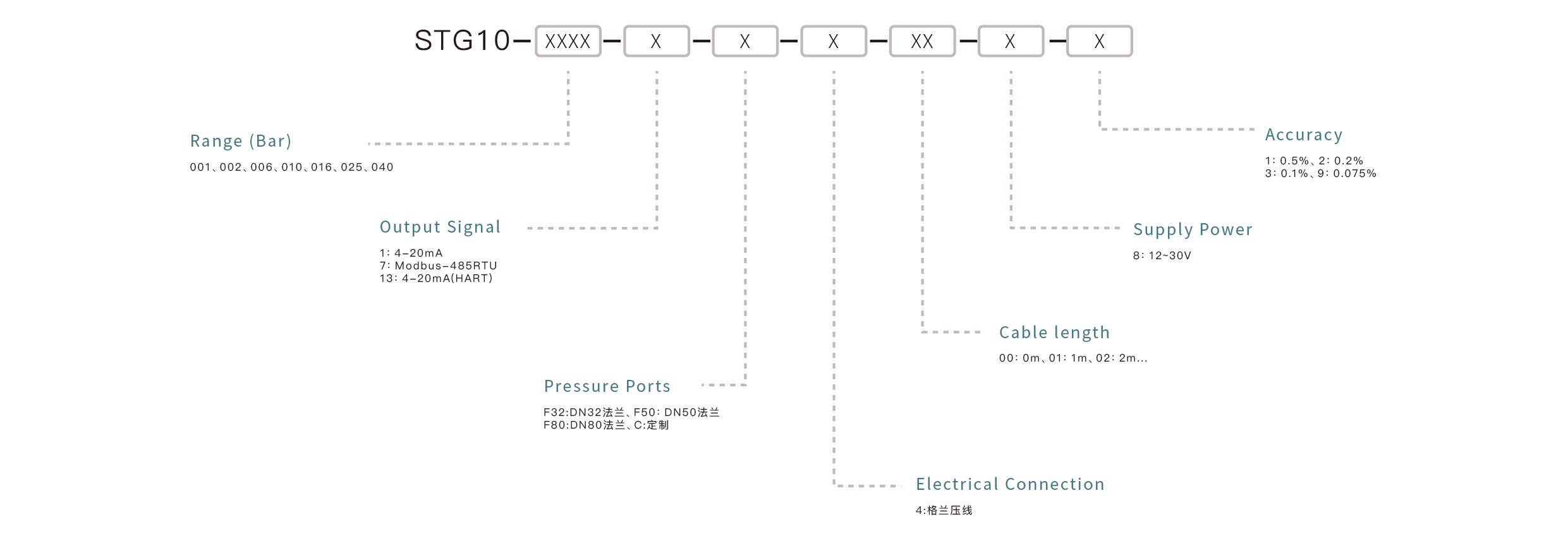

8. Model Selection / Ordering Code

Please specify the full ordering code when requesting a quotation.

        Model - Range - Output - Accuracy - Electrical Interface - Connector - Cable Length - Supply Voltage

        Example:
        STG01 - 0~100bar - 4-20mA - 0.5%- G1/4 - M12 - 1m - 24V
