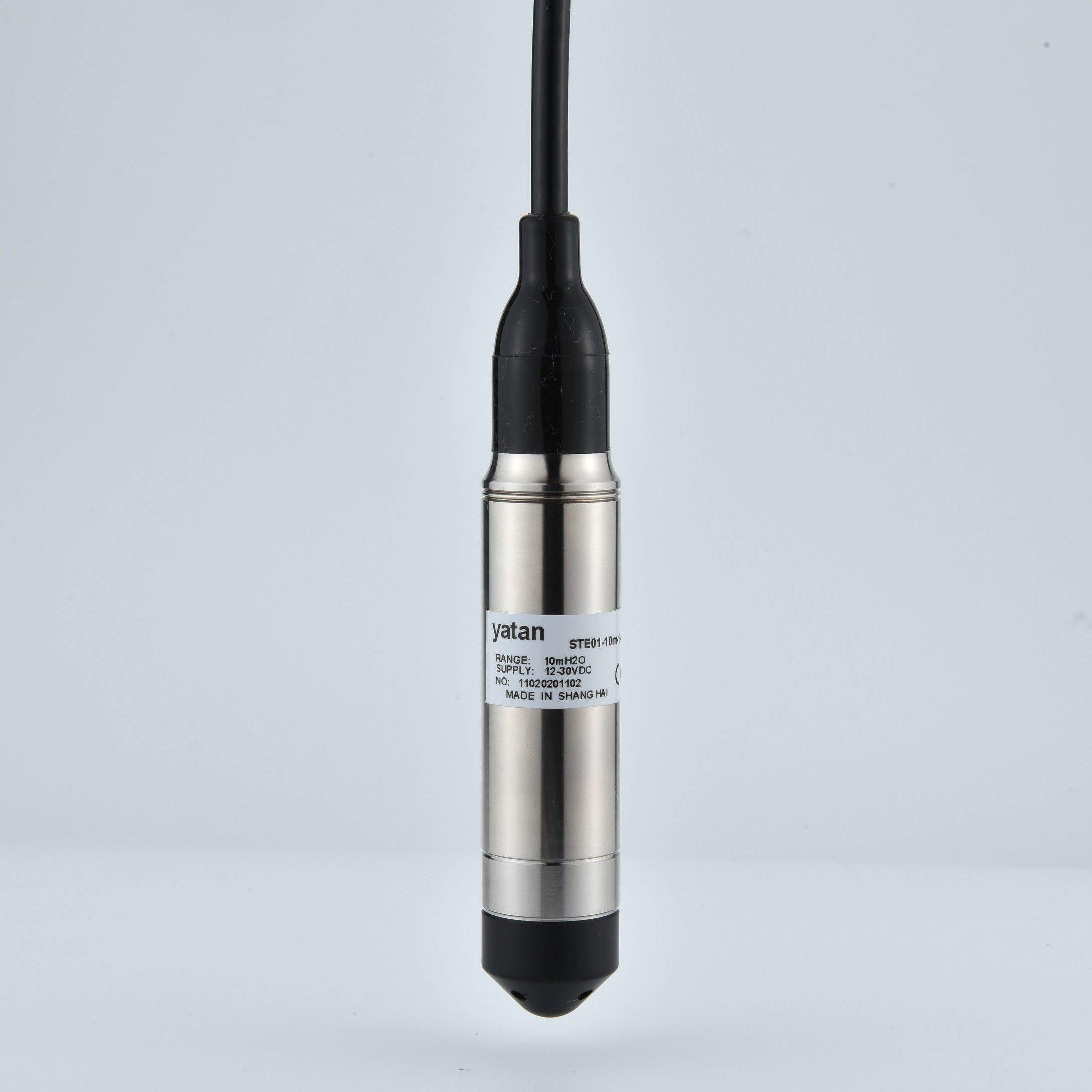

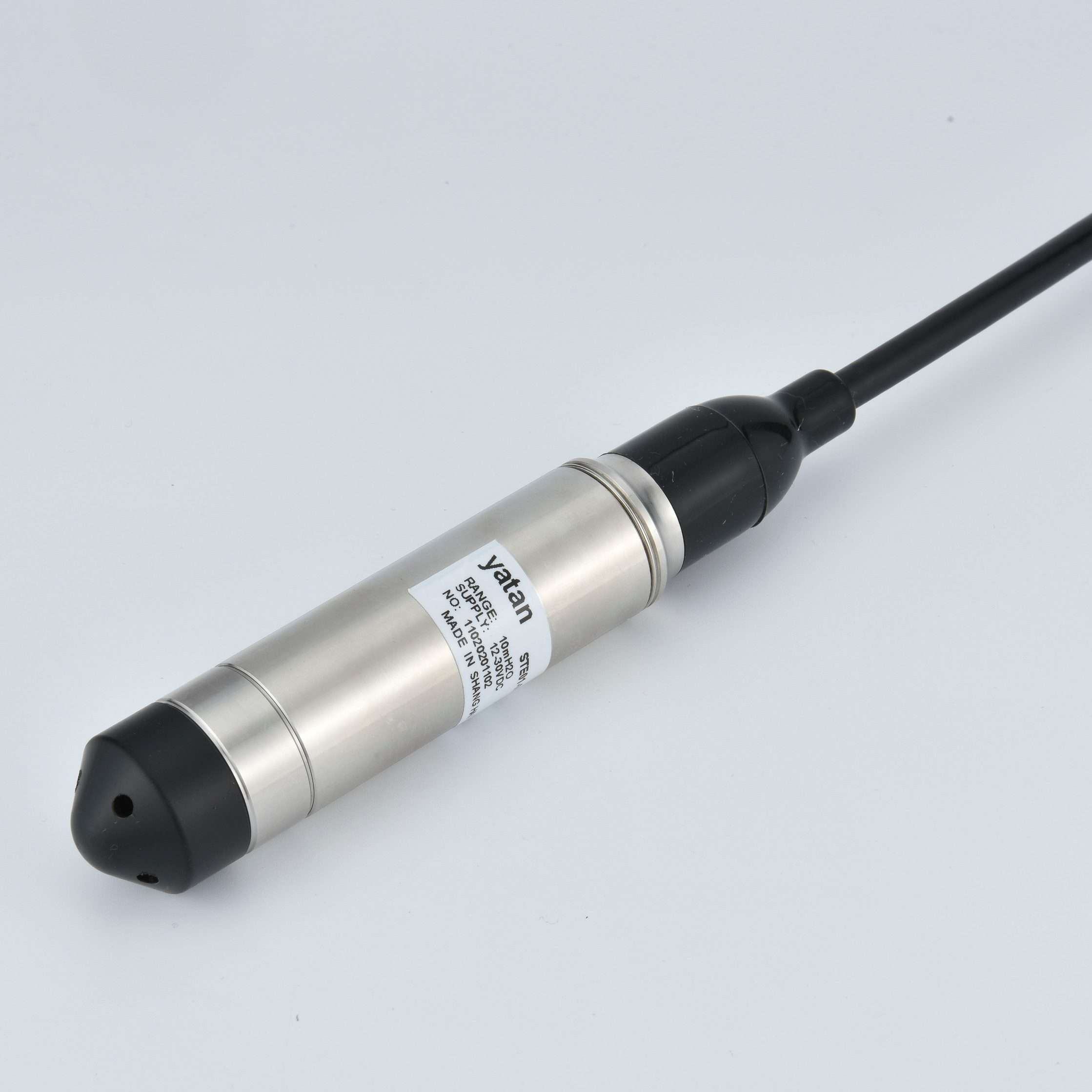

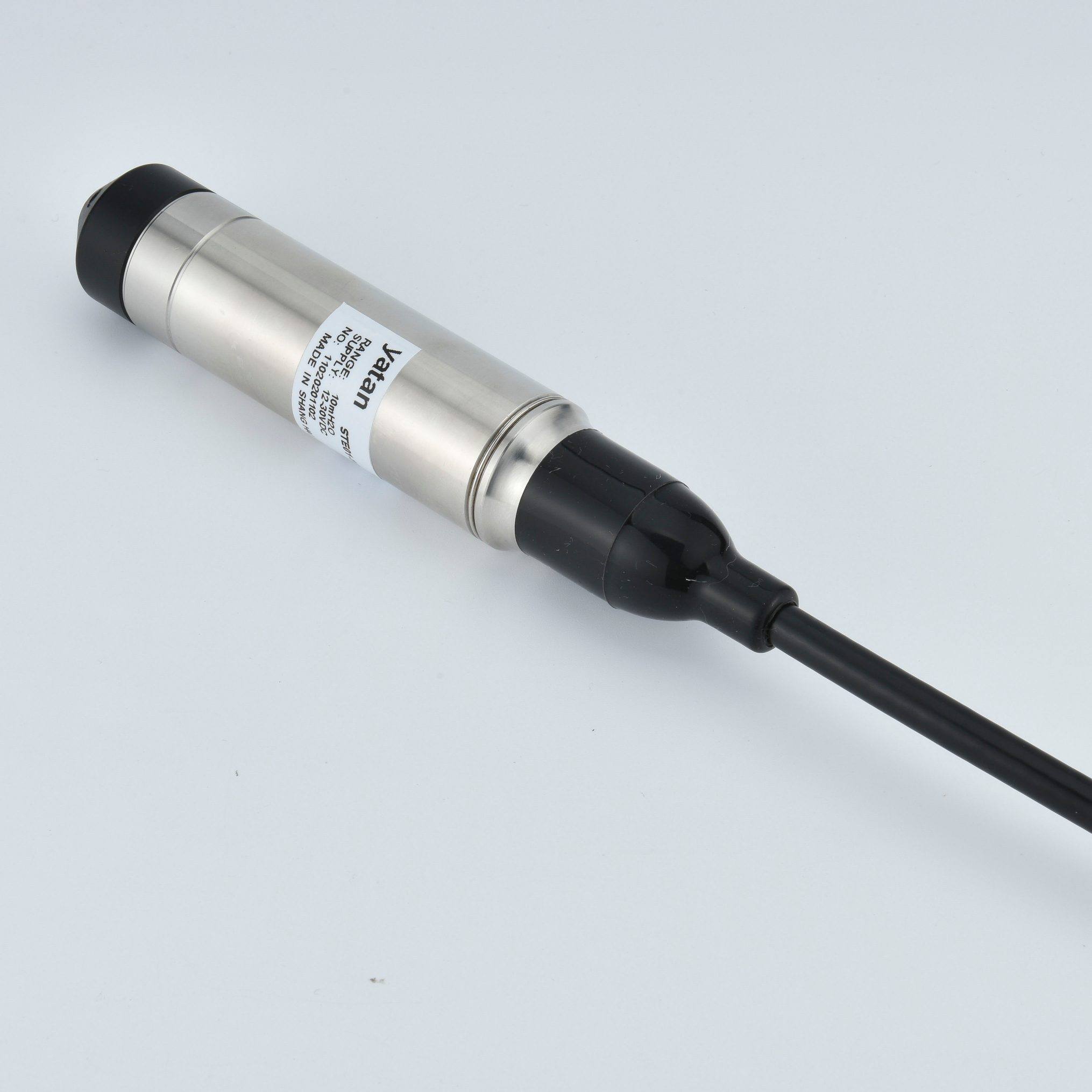

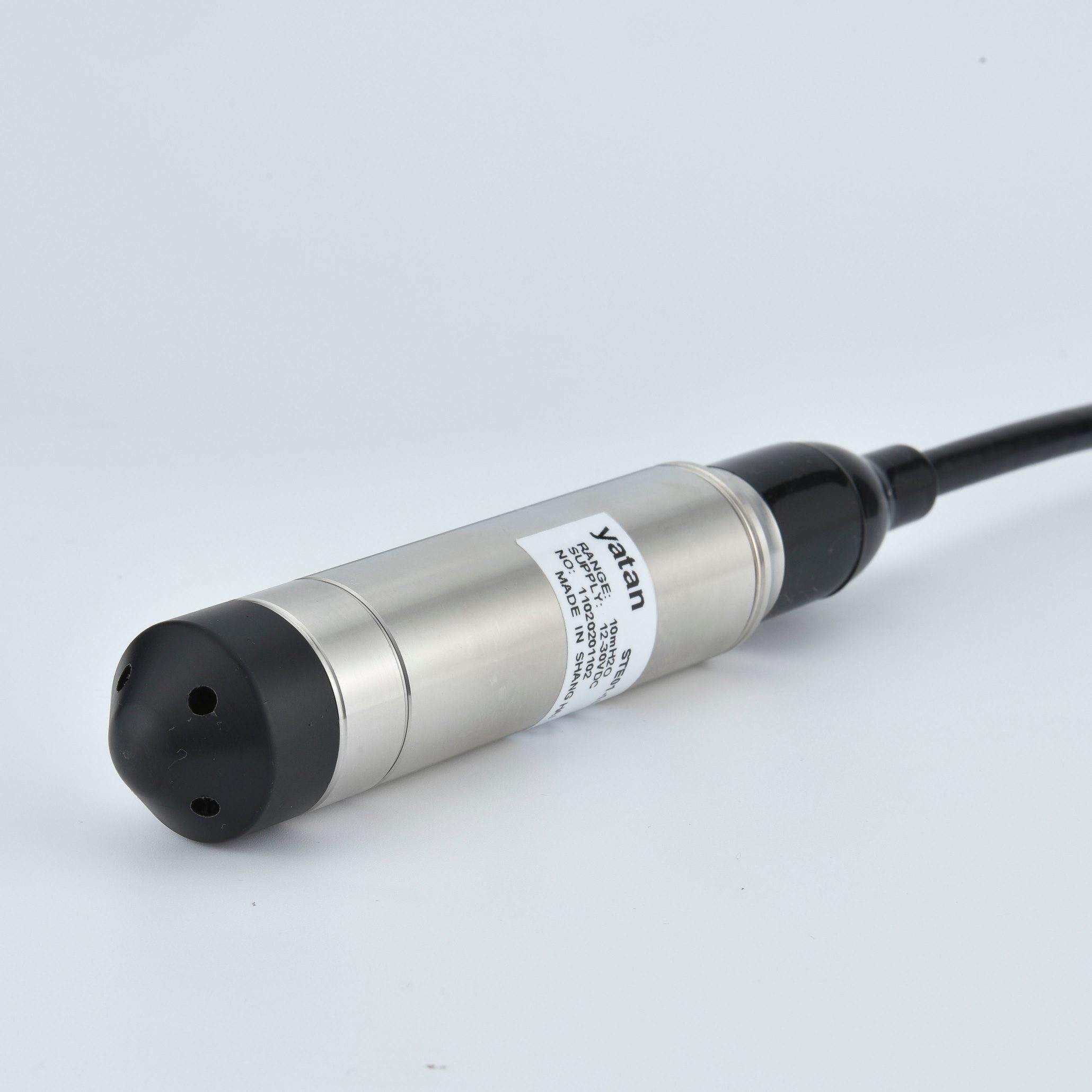

STE01 Submersible Liquid Level Transmitter image frontSTE01 Submersible Liquid Level Transmitter image backSTE01 Submersible Liquid Level Transmitter image sideSTE01 Submersible Liquid Level Transmitter image top
STE01 Submersible Liquid Level Transmitter main image

STE01 Submersible Liquid Level Transmitter

The STE01 submersible level transmitter features a high-performance diffused silicon piezoresistive pressure sensor, designed to accurately measure liquid level based on hydrostatic pressure proportional to depth. With a measuring range of 0–0.5 to 200 mH2O, it supports multiple output signals including 4–20mA, 0–10V, and Modbus RS485, making it ideal for industrial automation and remote monitoring systems. Its integrated structure with IP68 protection ensures reliable long-term operation in harsh environments ranging from -40°C to +125°C. Constructed with 304/316L stainless steel or titanium alloy, it is compatible with various corrosive media. Widely used in applications such as water wells, wastewater treatment, rivers, seawater, and industrial water systems, the STE01 provides a durable and efficient solution for precise liquid level measurement and control in industries like oil, chemical processing, power plants, and municipal water supply.

1. Key Features

2. Technical Specifications

General Electrical Data

Pressure range 0–0.5 to 200 mH2o
Pressure Reference Gauge
Output signals 4–20mA, 1–5V, 0–5V, 0–10V, CANopen, RS-485(Modbus RTU)
Supply Voltage 12 VDC / 24 VDC

Performance Specifications

Accuracy ±0.5% F.S., ±0.2% F.S., ±0.1% F.S.
Long-term Stability ≤ ±0.2%F.S./year
Overload pressure 200% F.S., 300% F.S.
Burst pressure 500% FS
Temperature Compensation Range (accuracy maintained within this range) -20°C to +85°C, -40°C to +125°C
Operating Temperature Range -40 to 125°C / -40 to 150°C
Storage temperature range -40 to +125°C/-40 to +150°C
Media temperature range -40~+125℃, -40~+150℃

3. Applications

4. Selection Guide

Pressure Sensor Selection Key Points: Confirm the measuring range, match the output signal, ensure media compatibility, select the appropriate mounting interface, and define the accuracy requirements.

5. FAQ (Frequently Asked Questions)

Q1: What applications is the STE01 Submersible Level Transmitter suitable for?

The STE01 submersible level transmitter is ideal for water wells, tanks, wastewater treatment, rivers, lakes, seawater, and industrial water systems. It is widely used in oil, chemical, power plants, and municipal water supply industries.

Q2: Can the STE01 submersible level transmitter be used for wastewater or corrosive liquids?

Yes. The STE01 submersible level transmitter is made of 304/316L stainless steel or titanium alloy, making it compatible with wastewater and certain corrosive media.

Q3: How to choose the correct range for the STE01 submersible level transmitter?

Select the measuring range based on the maximum liquid depth (e.g., 10m, 50m, 200mH2O). It is recommended to leave a 10–20% margin to ensure accuracy and long-term reliability.

Q4: What output signals does the STE01 submersible level transmitter support?

The STE01 supports multiple outputs including 4-20mA, 0-10V, 1-5V, Modbus RS485, and CANopen, making it compatible with PLC and remote monitoring systems.

Q5: How to install the STE01 submersible level transmitter?

The STE01 uses a submersible installation method. Simply place the probe into the liquid and secure the cable, making installation quick and easy.

Q6: What is the protection rating of the STE01 submersible level transmitter? Can it be submerged long-term?

It features an IP68 protection rating, allowing long-term submersion in water, suitable for deep wells and continuous monitoring applications.

Q7: What is the accuracy and stability of the STE01 submersible level transmitter?

The STE01 offers high accuracy up to ±0.1% F.S and long-term stability ≤ ±0.2% F.S/year, ensuring reliable performance.

Q8: What is the operating temperature range of the STE01 submersible level transmitter?

It operates within -40°C to +125°C (up to 150°C optional), making it suitable for harsh industrial and outdoor environments.

6. Related Products

7. Contact Us

📧 Email: sales@yatansensor.com,   support@yatansensor.com

💬 WhatsApp:+86 185 1660 2370

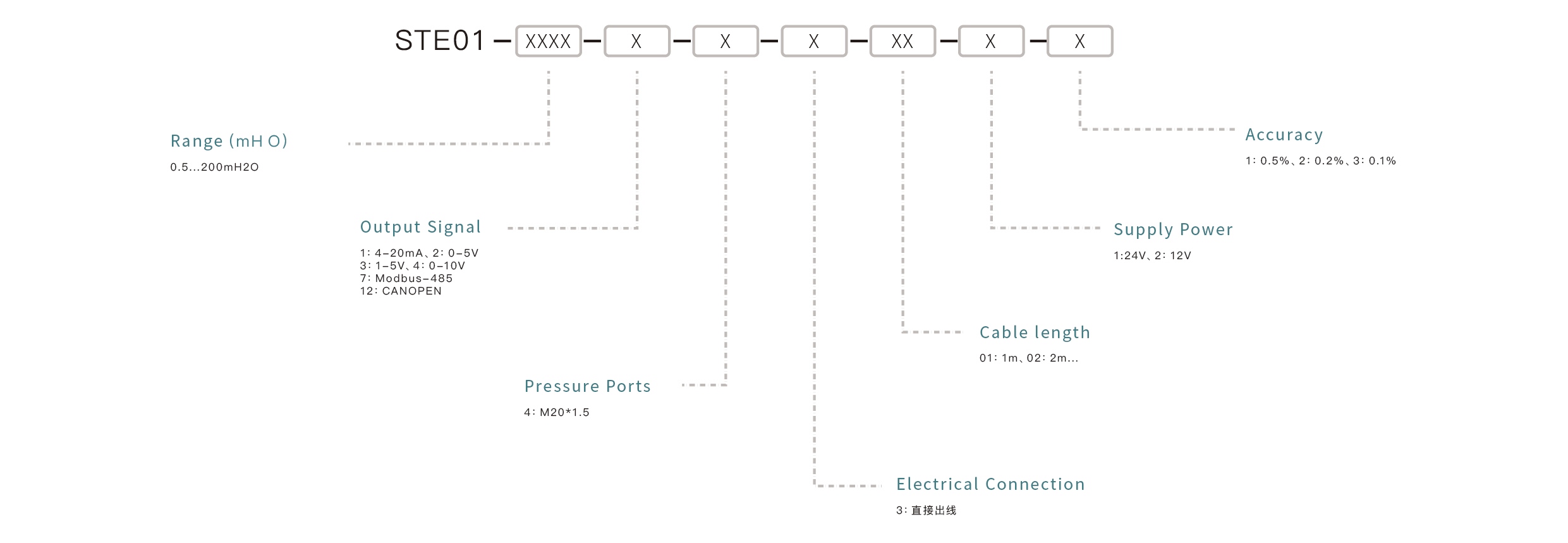

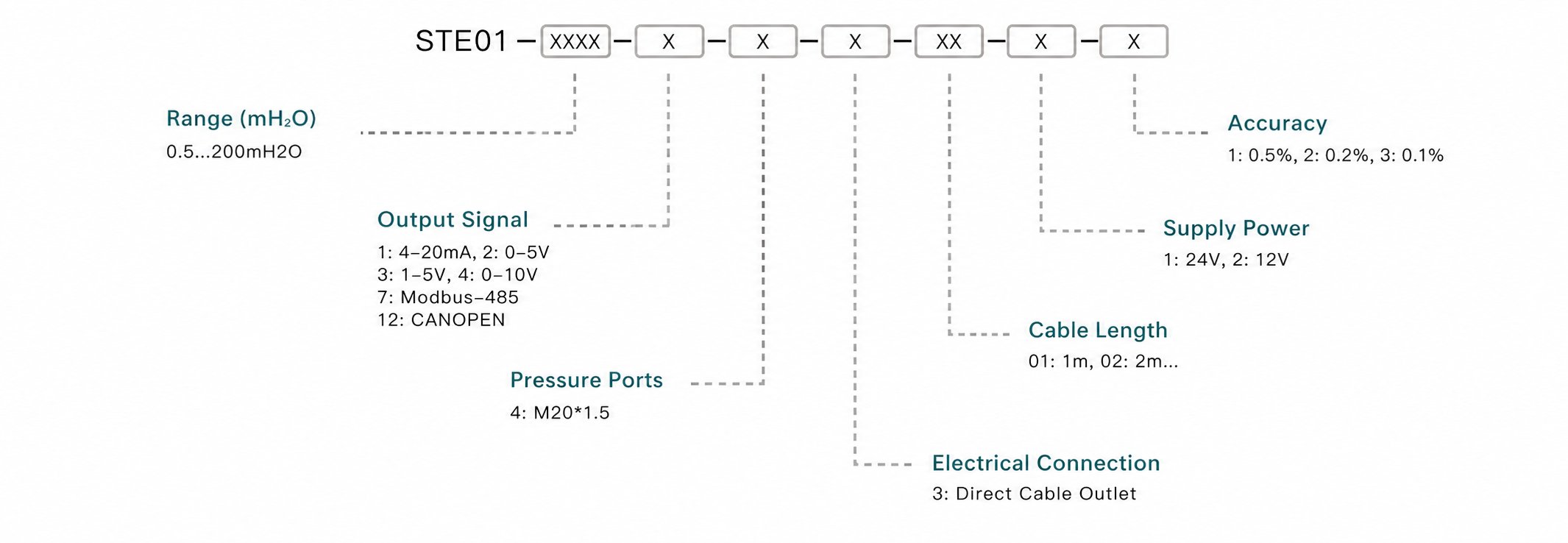

8. Model Selection / Ordering Code

Please specify the full ordering code when requesting a quotation.

        Model - Measuring Range - Output Signal - Thread Interface - Connector - Cable Length - Power Supply - Linearity Accuracy

        Example:
        STE01 - 100mH2O - 4~20mA - M20*1.5 - Direct cable outlet - 1m - 12VDC - 0.5%
