Q1: What applications is the STG53 Compact Pressure Transmitter suitable for?
The STG53 Compact Pressure Transmitter is widely used in construction machinery, railway braking systems, wind power hydraulics, medical equipment, semiconductor systems, and other industrial automation applications.
Q2: What is the pressure range of the STG53 Compact Pressure Transmitter?
It offers a wide measurement range from 0~0.1 up to 1000 bar, making it suitable for both low and high-pressure applications.
Q3: What output signals does the STG53 Compact Pressure Transmitter support?
It supports multiple standard outputs, including 4–20mA, 1–5V, 0–5V, 0–10V, and CANopen, ensuring compatibility with various industrial control systems.
Q4: What is the protection rating of the STG53 Compact Pressure Transmitter?
The device features an IP67 protection rating, providing excellent resistance against dust and water, suitable for harsh environments.

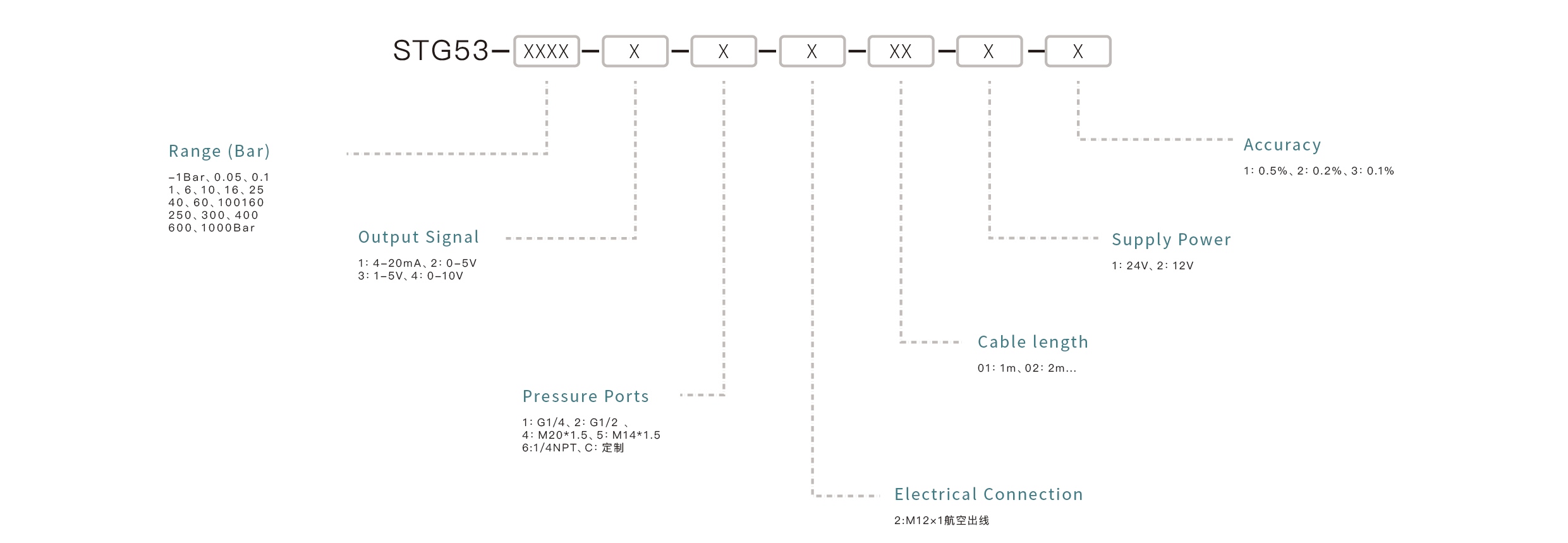

Q5: Does the STG53 Compact Pressure Transmitter support custom configurations?
Yes, it supports multiple standard pressure connections such as G1/4, NPT, and M14, as well as customized options based on application requirements.
Q6: What is the accuracy of the STG53 Compact Pressure Transmitter?
The STG53 Compact Pressure Transmitter offers multiple accuracy options, including ±0.5% F.S, ±0.2% F.S, and ±0.1% F.S, suitable for both standard and high-precision industrial applications.
Q7: What is the operating temperature range of the STG53 Compact Pressure Transmitter?
It supports an operating temperature range from -40°C to 125°C or up to 150°C, with temperature compensation from -35°C to 125°C to ensure stable performance.
Q8: How reliable is the STG53 Compact Pressure Transmitter for long-term use?
The transmitter features excellent long-term stability (≤±0.2% F.S/year) and undergoes strict testing and aging processes, making it ideal for continuous industrial operation.
