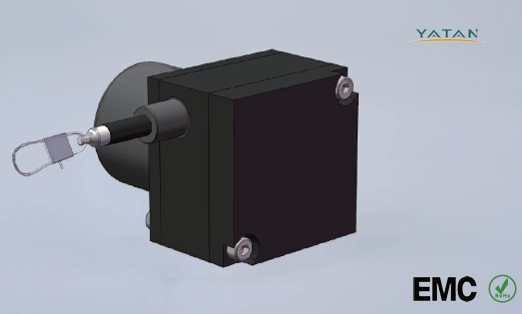

STL07 Draw Wire Displacement Sensor
The STL07 draw wire displacement sensor converts mechanical movement into a proportional electrical signal for accurate linear position measurement. As the measured object moves, it pulls the sensor’s cable, driving the internal transmission mechanism and rotary position sensor. When the motion reverses, an integrated spring-loaded system automatically retracts the cable while maintaining consistent tension, ensuring smooth and stable operation. The output signal remains directly proportional to the cable displacement. The STL07 features a precision cable guiding system that ensures even winding during extension and retraction, improving linearity and reducing wear. This design enhances measurement accuracy and extends the sensor’s service life. Constructed with an anodized aluminum housing, the sensor offers excellent resistance to corrosion and harsh environments. High-strength alloy components provide durability, while a waterproof aviation connector ensures reliable signal transmission. The plastic-coated steel cable further improves wear resistance and long-term stability. With its compact design, high precision, and reliable performance, the STL07 is ideal for industrial automation, heavy machinery, and position monitoring applications.
